Step by step instructions to fit the mudguards to the base 16 and base 20 quickly and easily. If you need any further help with fitting, please get in touch — we’re always happy to help.

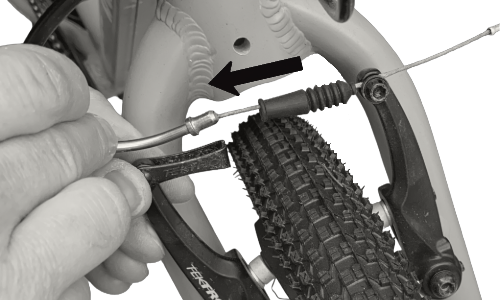

Close-up of a bicycle brake cable being adjusted with a hand holding the brake lever.

1. Release the front and rear brakes by pulling the noodles out of the noodle holders.

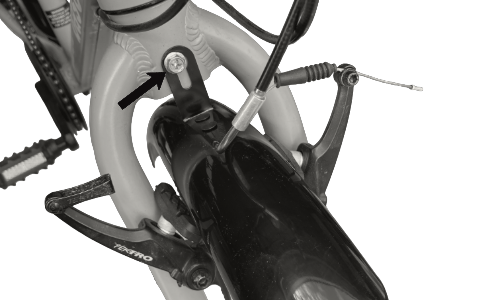

Close-up of a bicycle's front mudguard on a white background

2. Attach the front mudguard to the fork crown using the supplied bolt, nut and washers.

Slide image

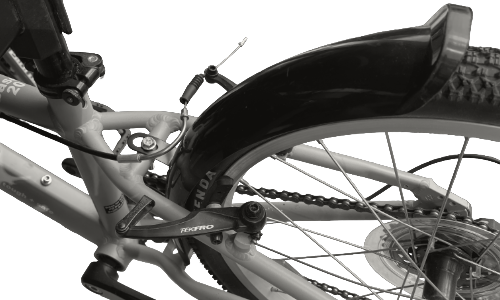

3. Attach the rear mudguard to the seat stay bridge using the supplied bolt, nut and washers.

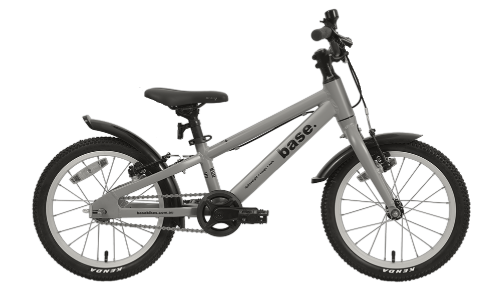

Children's bicycle showing mudguard location on a white background

4. Adjust the position for the best clearance from the brakes and tyres.

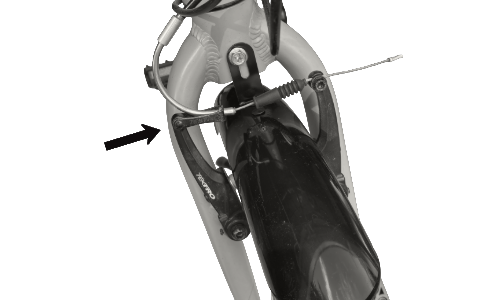

Close-up of a bicycle mudguard on a white background

5. Reattach the front and rear brakes by inserting the brake noodle back into the noodle holder. Squeeze the brakes to check they work and are not rubbing on the wheel rim.

×
