Step by step instructions to fit the kickstand to the base 16 and base 20 quickly and easily. If you need any further help with fitting, please get in touch — we’re always happy to help.

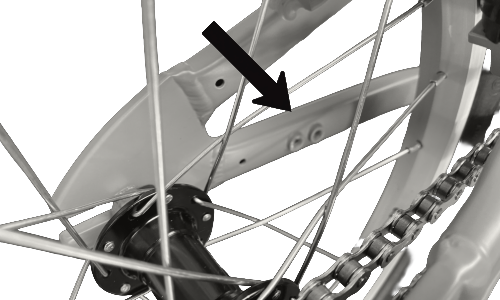

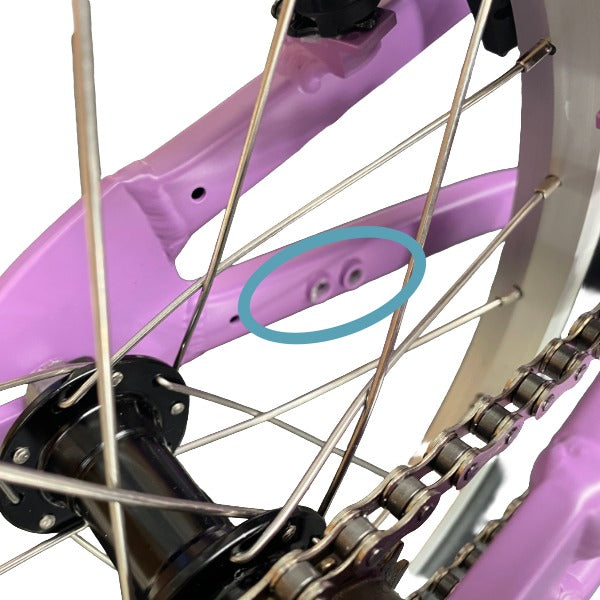

1. Turn the bike upside down. Locate the two mounting holes on the inside of the left-hand side chainstay, next to the rear wheel.

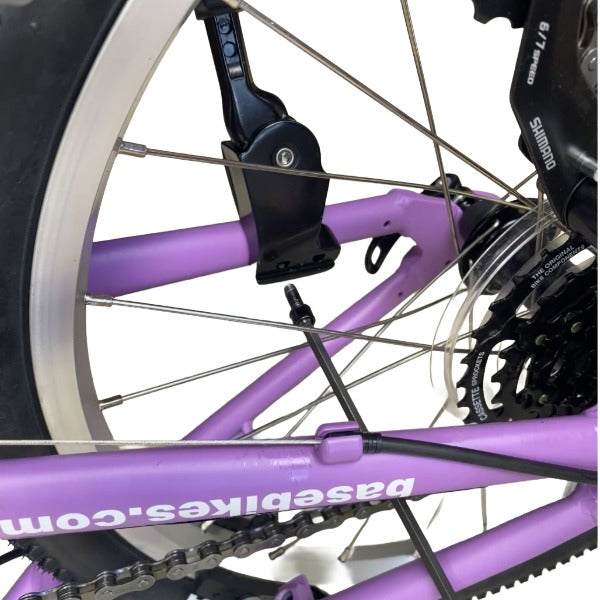

2. Align the kickstand with the mounting holes so that, when folded up, it points towards the rear of the bike.

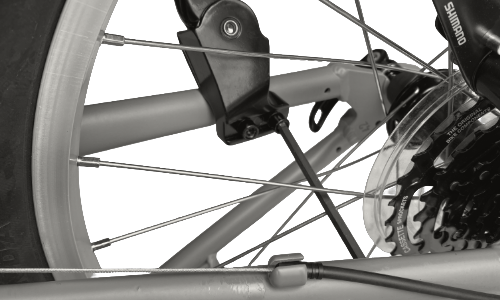

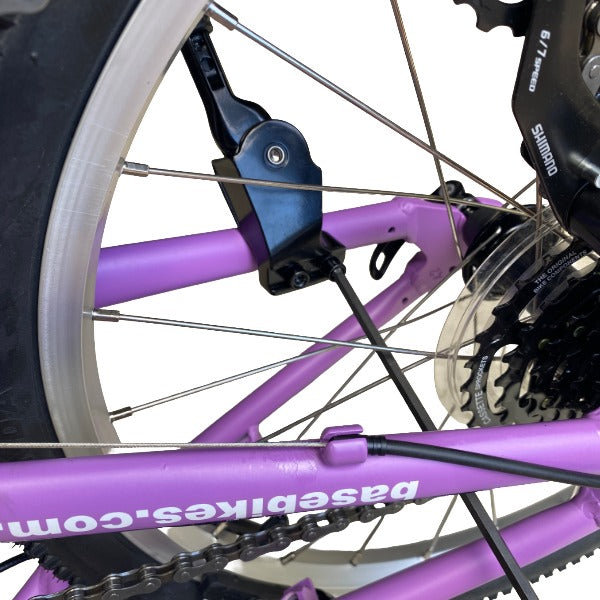

Using the supplied 5 mm long-length ball-end Allen key, loosely fit the two supplied mounting bolts.

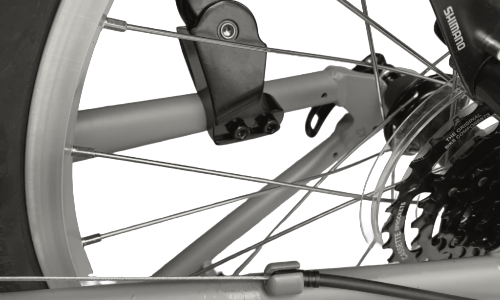

3. Firmly tighten both mounting bolts so the kickstand is secure.

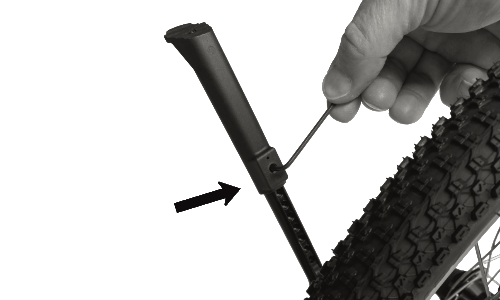

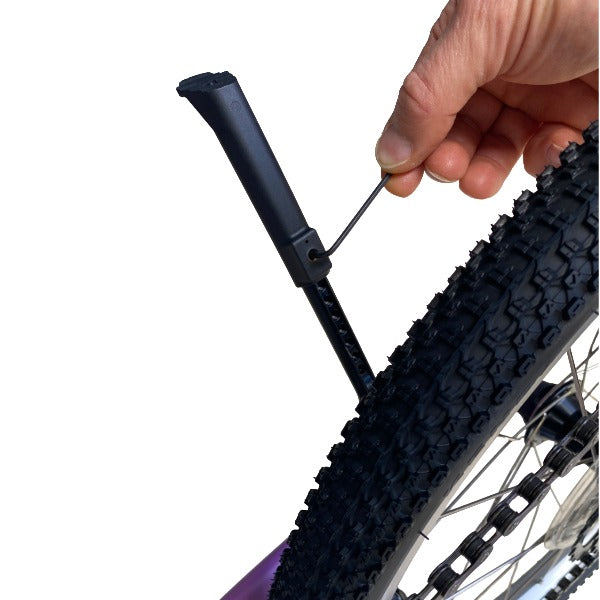

4. Use the supplied 2.5 mm Allen key to adjust the kickstand length so the bike stands upright with a slight lean and feels stable.
